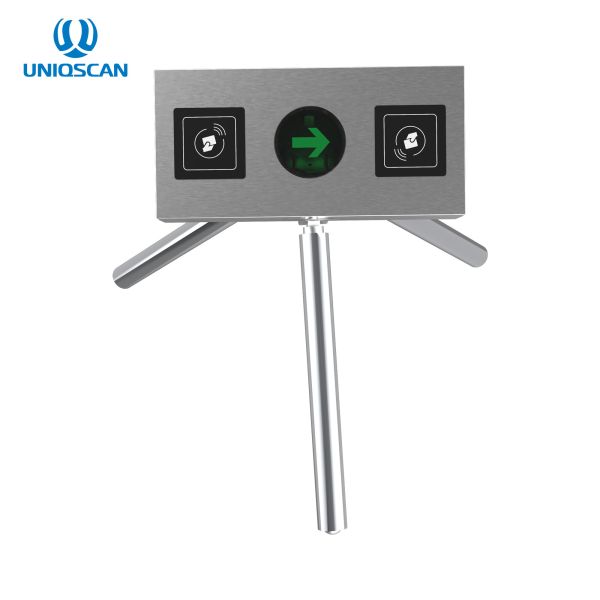

Semi-automatic Vertical Tripod Turnstile
Specification:
| Product Name | Semi-automatic Vertical Tripod Turnstile |
| Size | 480*230*280mm |
| Material | 1.2/0.8 mm 304d stainless steel |
| Channel width | ≤550mm |
| Passing speed | 30-35people/min |
| Unlock time | 0.2 seconds |
| Input voltage | 100-240V 50-60HZ |
| Drive voltage | 24V |
| Opening signal input | Dry contact |
Features:
1. LED indicator prompt,valid card displays green,illegal card
displays red;
2. Sample structure,directly installed on the wall;
3. Average life span,more than 3,000,000 times;
4. It has the function of power-off and pole drop;
5. Electromagetic lock;
6. Ordinary water lamp.
Main Functions and Features of the System:
1) The entire system runs smoothly, with a small noise and free of
mechanical impact.
The system adopts the exclusive technique of Jaw clutch. As a
result, the turnstile is more accurate and reliable for zero point
locking and unlocking.
2) DC Brushless Motor, Maintenance Free
3) It has failure self-detect and alarm indication function,
facilitating maintenance and application for the users.
4) It is provided with multiple operation modes for selection. It
can either read card in double way for flow limit, or reading card
in a way while barring in the other, or read card in a way while
free passage in the other. Moreover, the operation mode of
turnstile may be set up with the built-in small keyboard.
5) It has automatic function of opening or closing when power off.
6) The equipment is provided with a unified, standard electric
interface and is available to be integrated with various read/write
facilities to facilitate the system integration. It is able to
realize far end control and management with the help of
administrative computer.
7) It has a function of reading card with or without memory, and it
may be set up with the built-in small keyboard in accordance with
the requirements of the users.
8) Counting the passing people number automatically, and with LED
display
9) Direction indicator function, showing passing or prohibiting for the people
10) Prohibiting opposite direction passing, one side reading the
card, the other side will lock when you passing forcedly; the locking time can be set, and unlocked by the card.
11) Prohibiting illegal passing, the turnstile without the card,
the locking time can be set, and unlocked by the card.
12) Anti-hit against function, when the turnstile touches the
passing people, it will stop and after several seconds, it will
turn again.
13) Self resetting function, the system will cancel the people
passing right when reading the card but not passing, the time can
be set.
14) RS485 Communication function.
