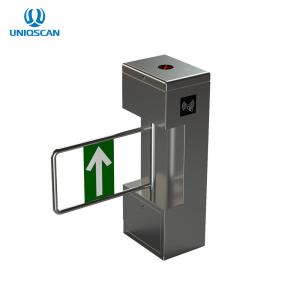

Access Control Gate Smart Card Supermarket Barrier Automatic
Opening Swing Turnstile
Product Introduction:
1. This series of turnstile adopt the unique technology of our
company---the precise photo electricity limit and gear to orient
the closure. The turnstile be unlocked and reset because of the
specific motor. The closure is very precise and stable. This series
of turnstile adopt standard electricity socket. It can read boom
code card, ID card, IC card and so on.
2. There is a series of turnstiles. You can choose the item and
specificalion. They can be used in school, metro and chamber and so
on. This series is of very high-tech. In order lo guarantee it can
run safely, please carefully read this instruclion!
Technical Parameters :
| Model | UT570-C |
| Brand | UNIQSCAN |
| Dimension | 168*1050mm |
| Material | 304 # stainless steel |
| Tickness | Head: 1.8mm |
| Input Voltage | AC220±10%,50HZ |
| Driving motor | 24V |
| Traffic speed | 35-40 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤1200mm |
| Swing arm transmission angle | 180 degrees |
| Operating temperature | -30ºC-70ºC |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Feature of the product:
1. Stainless steel box, box-type bevel shape, novel and beautiful,
durable.
2. Waterproof, sunscreen, anti-temperature, anti-cold.
3. Access Prompt function:Red and green light prompt the passing
information.
4. The programmable gates control state, with a variety of
operating modes you can choose, you can set aone-way or two-way control
5. Compatible IC, ID, magnetic card, bar code card, and other
control equipment.
6. Power failure emergency function after power channel
automatically open, closed automatically after power-on, to meet
the special needs of the user and the fire safety requirements
7. The control panel with counting function, LED digital display
function (optional)
8. The standard input and output interface, is the best choice for
system integrators
9. With automatic reset function, gate, not prevailing within the
stipulated time, the system will automatically cancel the access permissions of the user.(the standard is gate
turns on 5 seconds will be automatically reset)
10. Pinch, anti bumps function, Blockage when in the process of the
swing arm reset within a predetermined time, click stop working automatically, the default reset again
after a delay, and the intensity is very small(2kg)
11. Sound, light alarm function: with trespassing, trailing alarm
12. Scour protection function ,when the gate signal is not
received, the stick is automatically locked
13. Fault detection and alarm function, user-friendly maintenance
and use
Scope:
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to
factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park,
tourism area, subway, bus station, air port, dock, play ground,
gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym,
subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to
factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for
safty.
ESD system: Combine with profession ESD tester for factory, special area
entrance.
Detail Photo :
